SOUNDBOKS (GEN. 3)

Soundboks (Gen 3)
Batteryboks
Charger
Manual

SOUND

AMPLIFIER

Merus Audio eximo® amp switching

3 × 72W RMS class D amplifiers

Advanced Bass DSP

ACOUSTICS

Effective frequency range: 40Hz - 20kHz

Custom sound profile with bass enhancer

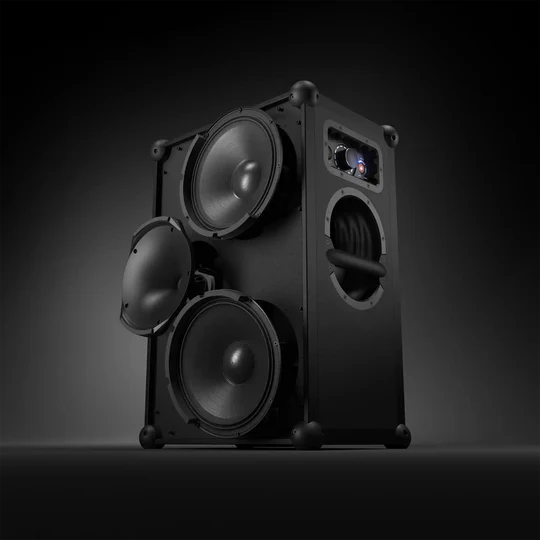

DRIVER UNITS

2 × 10” 96dB woofers

1 × 1” 104dB compression driver tweeter

CONNECTIVITY

Bluetooth 5.0

TeamUP connection

▪ Wirelessly connect up to 5 (total) nearby New SOUNDBOKS(2019) speakers (SKAA network)

Pro Panel

▪ 2 × Combo microphone/instrument (XLR, 1/4”) input

▪ 1 × 3.5mm Stereo Input

▪ 1 × 3.5mm Stereo Output

▪ Bond Button for advanced JOIN settings

BUILD

WEIGHT

34 pounds (15.4 kg)

MATERIALS

Poplar cabinet

Powder-coated aluminum frame

Powder-coated steel grill and handles

Silicone ball corners

SMP temperature-flex adhesive

DIMENSIONS

66 × 43 × 32 cm / 25.6 × 17 × 13 inches (H × W × D)

FEATURES

Swappable grill and batteries

IP65 rated electronics coating

Pulse Reflex Port

UI Panel

▪ Volume control

▪ Host/Join mode for wireless TeamUP

BATTERY

LIFE

40 hours at mid-volume

5 hours at full volume

3.5 hours full recharge

DESIGN

5-step LED battery-life indicator

Heavy-duty DC-connector

CELL TYPE

12.8V, 7.8Ah Lithium Iron Phosphate (LiFePO4)

-10C to 40C temperature range

99.84Wh or 7.8Ah capacity

BATTERY MANAGEMENT SYSTEM (BMS)

Over and under-discharge protection

Short circuit protection

Overheat protection

Cell voltage management

APP

SOUND SETTINGS

Custom EQ or selection of our optimised sound modes (Bass+, Power, Indoor)

True stereo roles (left / right / mono)

PRO PANEL

Configurations for Guitar, DJ mixer, Mic, Active instruments

Full input EQ control for the Pro inputs (XLR or 1/4'/6.3mm Jack)

GENERAL

Volume adjustment

Disconnect/Power off

Intuitive setup of a wireless setup, TeamUp. Connect to a specific Host-speaker or switch Host

See the inputs connected to you speakers to understand your wireless setup

WIRELESS SETTINGS

Auto-connect for audio

Pincode for audio and the app (hijack prevention)

Toggle for SKAA Pro mode, for reduced latency in a wireless multi-speaker setup

FIRMWARE UPDATE

Upgradeable software so we can continuosly upgrade your products!

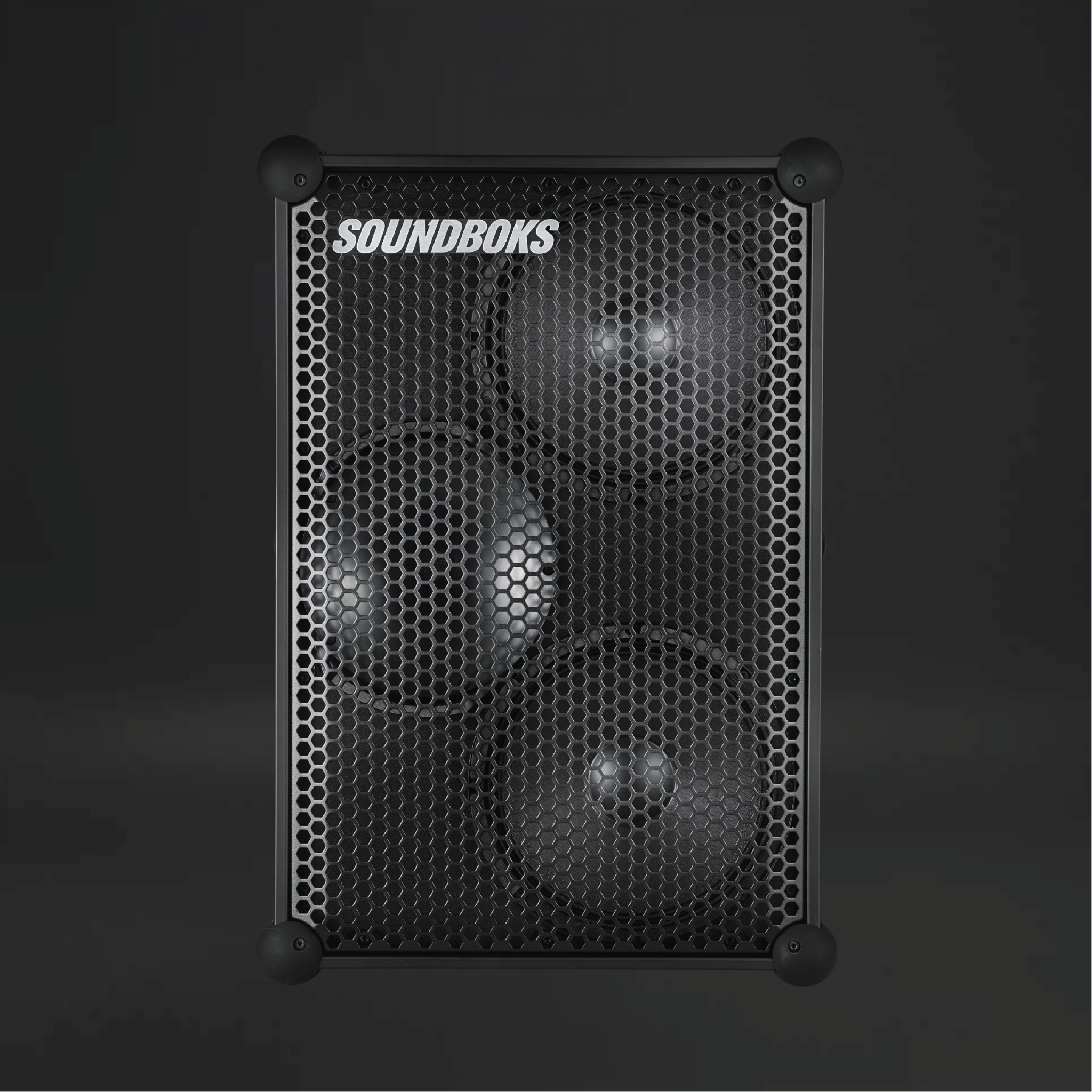

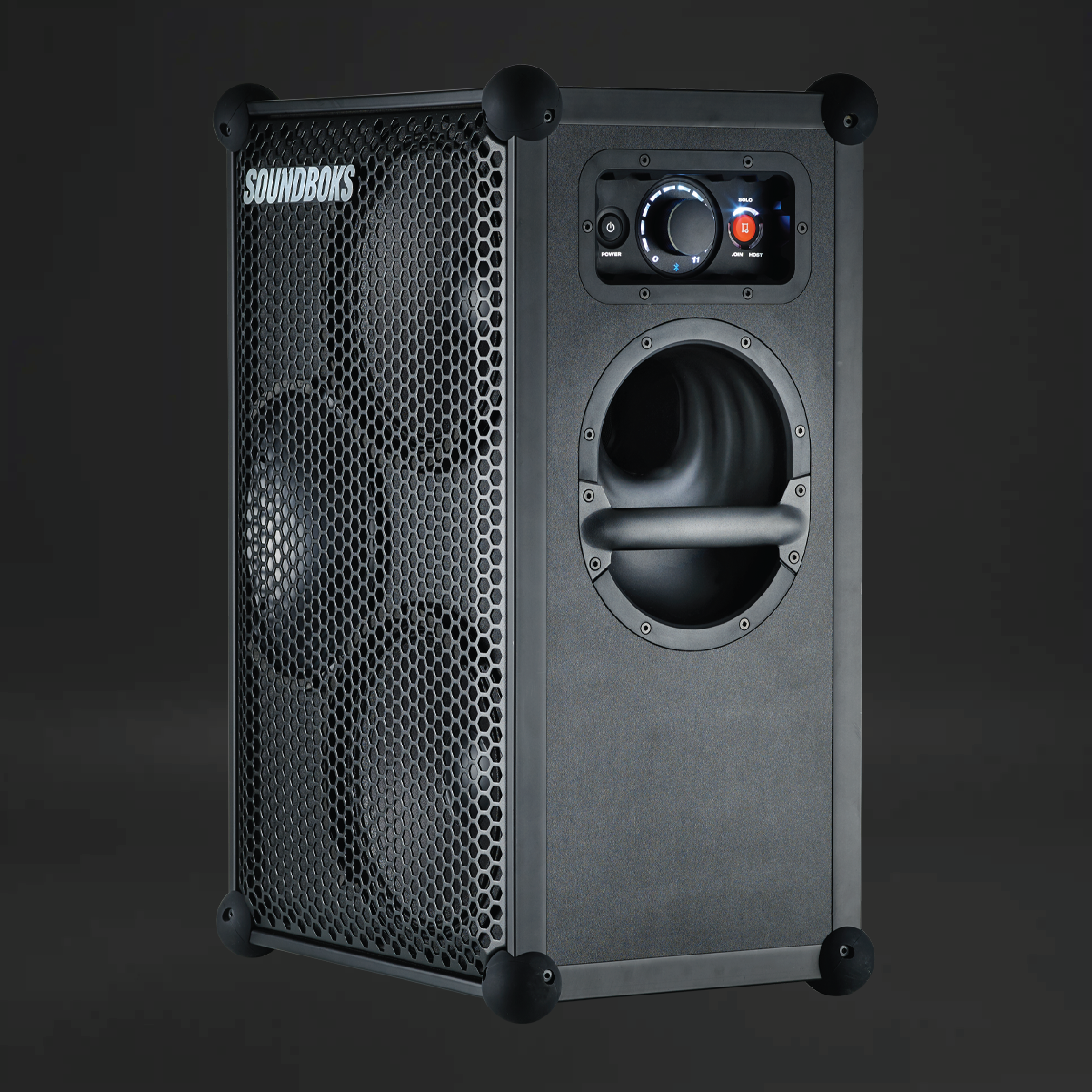

You’re looking at it. The portability of Bluetooth speakers, the ease of use of a soundbar, and the volume and sound of a PA—the SOUNDBOKS is truly a one-of-a-kind speaker. The SOUNDBOKS Gen. 3 adds a Pro Panel to its performance capabilities, so you can connect microphones, mixers, instruments, devices and other speakers with no adaptors.

But it’s on the inside that really counts. With OTA (over-the-air) firmware upgrades through the SOUNDBOKS app, this Bluetooth Performance Speaker can perform even more. It’s basically like getting a new speaker with each upgrade.

We offer free standard delivery for all orders delivered in Australia. All products purchased through SOUNDBOKS.com.au have an expected delivery time of 2-6 business days (Monday-Friday, excluding holidays). For rural addresses, please allow for additional business day(s).

LIMITED WARRANTY- FOR SALES IN AUSTRALIA: Against defects for 2 years from the date of purchase. Product will be replaced or refunded at our option. At your cost, deliver product and Proof of Purchase to:

Seabreeze Supply Co

6 Grevillea Street
Byron Bay, 2481
NSW, Australia.
Phone - 02 6639 5555
email -support@soundboks.com.au

Our prices are displayed in AUD. We accept Visa, MasterCard, American Express, Discover, JCB, and Diners Club. We now also accept Shopify Pay, Apple Pay and we also offer financing options through Afterpay in Australia.

What is the usual playtime on a SOUNDBOKS (Gen. 3)?

The BATTERYBOKS used with New SOUNDBOKS lasts for ~40 hours when playing music at mid-volume and ~5 hours at full volume (126 dB) depending on the amount of bass frequencies being played.

Do I need to use the SOUNDBOKS app with the SOUNDBOKS (Gen. 3)?

Nope, but we highly recommend using it. The SOUNDBOKS works as a speaker fully on its own—meaning you can play music wirelessly, connect devices to the ProPanel and use TeamUP to connect multiple Gen. 3 speakers. However, without the app you won’t be able to access the sound and performance upgrades. You’ll also miss out on the advanced controls and EQ profiles. Plus you can’t use TeamUp to assign speaker roles, and that stuff is really cool.

Do I need to register my SOUNDBOKS in the SOUNDBOKS app?

If you want an additional year of warranty (on top of the standard SOUNDBOKS 2-year warranty) or if you want access to the full world of SOUNDBOKS, additional speaker security and the awesome features we’re currently developing, then you need to register. But if none of that matters to you, then feel free to enjoy your SOUNDBOKS as it is out-of-the-box.

Why does a Bluetooth speaker need to be durable?

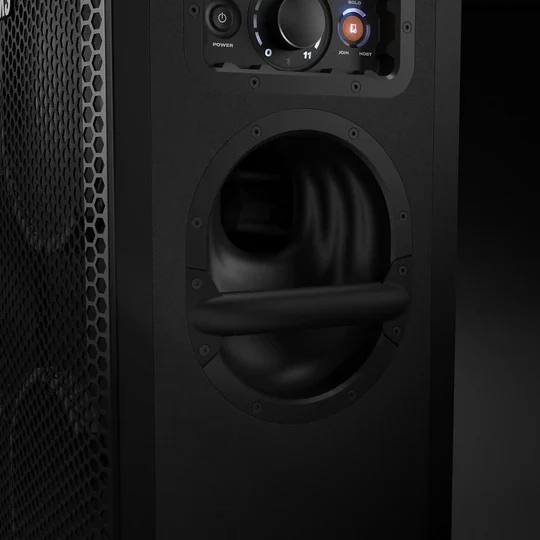

We don’t know what your shindigs look like, but our parties and events are unpredictable, so we designed the SOUNDBOKS to be ready for almost anything while still sounding full and loud. The coated poplar plywood cabinet of the SOUNDBOKS (Gen. 3) is acoustically resonant and light, with optimal strength and flex – while the coating keeps it water resistant. The internal components of the SOUNDBOKS have an IP65 rating (though the bass ports mean that it should never be fully submerged), and the electronics and battery can play in temperatures from -10 to +40 °C (+14 to +104 °F).


Can I connect instruments and microphones to the SOUNDBOKS (Gen. 3)?

Hell yes. Connect your mixer, guitar or any other instrument that uses TS or XLR outs to your Pro Panel found on the backside of the SOUNDBOKS (Gen. 3). The Pro Panel has two XLR/TS (6.35mm) combo inputs (labelled CH1 & CH2), plus one 3.5mm AUX input and one 3.5mm AUX output to connect to other speakers, including early generations of the SOUNDBOKS.

Can I charge and play my SOUNDBOKS at the same time?

The SOUNDBOKS was built for maximum performance while running on the battery only. The charger T-jack was designed to be used while playing at moderate volumes, but the charger is NOT a power supply. You CAN charge and play at the same time, but to avoid damaging your battery, keep your SOUNDBOKS under HALF VOLUME—12 o’clock on the dial with 5 lights illuminated—when playing and charging simultaneously. This is with your Bluetooth device on full volume.

What is the wireless range of the SOUNDBOKS?

The range on your TeamUP SKAA wireless connection is largely determined by the setup you choose for your SOUNDBOKS speakers, the environment you’re in, and the amount of people moving through the signal. When using the SOUNDBOKS (Gen. 3) you want to make sure you have the best conditions for the wireless connection between your SOUNDBOKS speakers, and when placed optimally, the signal is tested at 50m (150 ft).

The Bluetooth 5.0 range from device to SOUNDBOKS is also dependent on the above factors, but when tested optimally, the signal is 10m (30 ft).
